Why are as-built drawings required for solar? Because the permitted design is a prediction and the roof is a fact. AHJs, utilities, asset owners, and sometimes incentive administrators want a record that matches the installed array before they close the job. On East Coast interconnection, that record often sits in the completion package next to the certificate of completion.

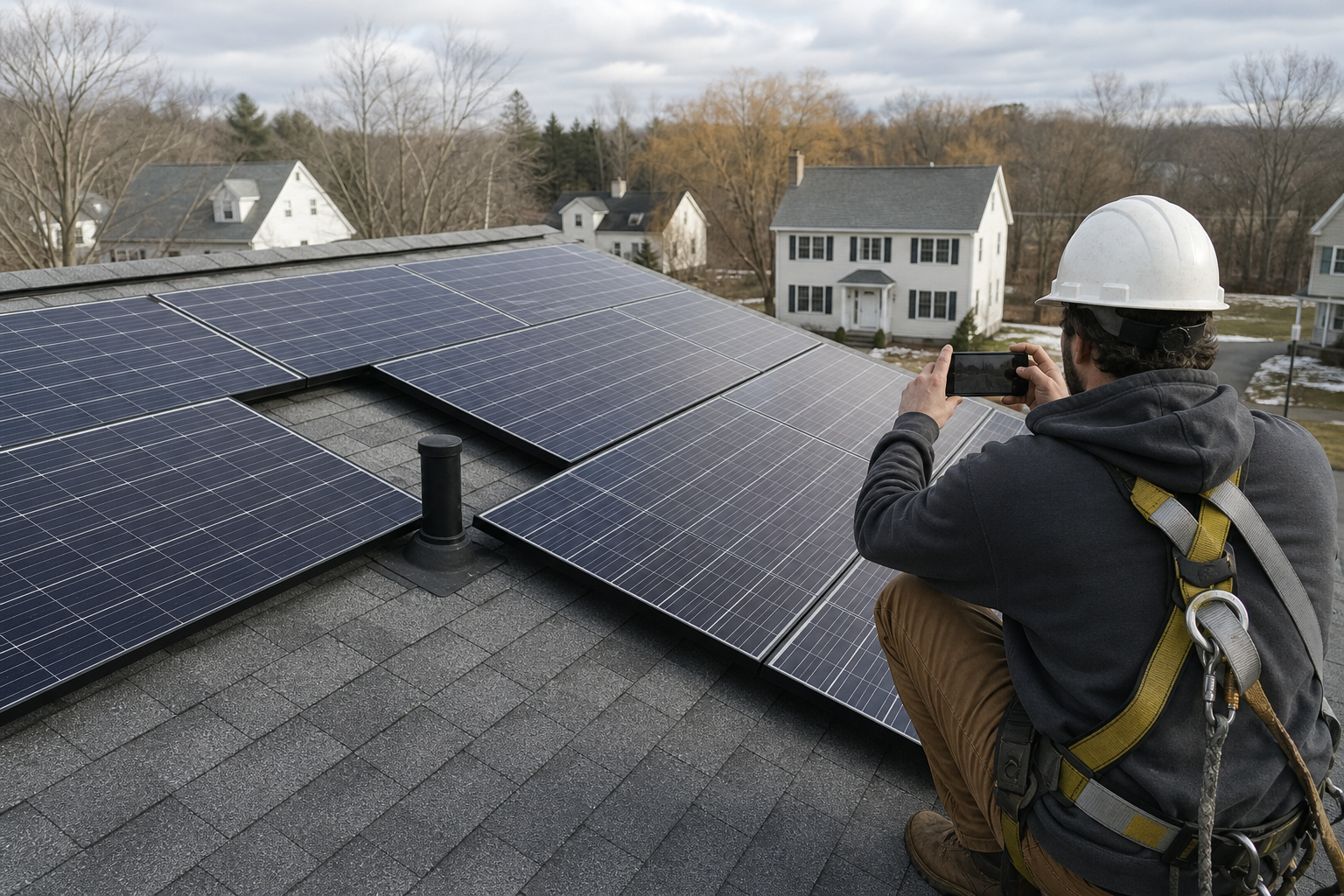

If nobody moved a module, you may not need a new drawing. If somebody did, and you still ask for permission to operate on the old one-line, you are asking the utility to authorize a facility that does not exist.
Closeout and PTO
Rhode Island Energy’s completion process requires completion documentation after install and before operating (except testing). Their simplified checklist includes diagrams and equipment locations. Con Edison’s SIR world, especially above the small-DG band, expects as-builts among other closeout items on larger jobs. PECO’s PTO path wants the installed system to be the reviewed system.
Utilities will not all use the words “as-built solar drawings.” They will ask for updated one-lines, photos, or record drawings. Same job: show what you built.
PTO, PPO, and permit to operate are that written authorization. As-builts are how you prove the application still describes the site.
Inspection
Some inspectors sign a job that drifted from the permit and tell you to file as-builts with the city. Some fail you until a revision is issued. Do not guess. If the inspector wants a revision permit, that is not an as-built problem, it is an AHJ problem. If they want record drawings after a pass, produce them.
Fire access paths that disappeared when the crew “tightened the array” are a common reason cities want a new plan, not a shrug.
O&M and the next electrician
Five years later, a ground fault is easier to chase on a drawing that shows actual string maps. Asset owners and lenders on commercial jobs treat as-built documentation as part of substantial completion. Residential homeowners will not ask for the CAD. Their electrician will, the first time a disconnect is replaced.
Interconnection nameplate
If you installed a smaller inverter than approved, some utilities still want the file updated before PTO so billing and the ISA match. If you installed larger, you may have left Simplified, Level 1, or small-DG. That is a new interconnection application, not an as-built sticker.
Massachusetts SMART, Connecticut RRES, NY-Sun, and Pennsylvania SREC registrations also want equipment lists that match. Incentive portals are not the AHJ, but they will bounce serials that do not exist.
What “required” does not mean
It does not mean every 6 kW residential roof needs a sealed 12-sheet as-built set. It means: when the field diverged, or when the completion checklist asks, you produce documentation at the same quality as the permit set.
Skipping it to save a CAD hour is how PTO sits for two weeks.
Athol Energy’s as-built drawing service updates the permit design and, when needed, the interconnection one-line so completion packages match the roof. If a PE sealed the original, we coordinate PE stamping on the revision.
Sources: RI Energy project completion, Con Edison interconnection, PECO MyGeneration.
Lenders, O&M, and the next owner
Commercial jobs with tax equity or a long O&M contract treat as-built documentation as a deliverable, like a commissioning report. If you skip it, the owner’s engineer will hire someone else to redraw what you already knew. That invoice will be uglier than CAD hours during closeout.
Residential jobs still benefit. The first ground-fault call is faster with a string map that matches the combiner. Your service manager will thank you even if the homeowner never opens the PDF.
When the utility is the one requiring it
Completion packages are part of the interconnection application life cycle. Rhode Island Energy, Con Edison on larger SIR jobs, and PECO-style PTO paths all want the installed facility to match the file. “Required” means they can withhold permission to operate. That is a stronger requirement than a nice-to-have ops binder.
If the change is material (more kW, new POI), you are in revision territory. As-builts cannot legalize a bigger array on a Simplified approval.
A closeout sentence we use
“Issued set matches the roof; no as-built.” or “As-built rev C uploaded to the portal, nameplate unchanged.” Pick one. Put it in the job folder. Moving forward to PTO is that sentence plus the certificate of completion.
