Quincy electrical comments are specific. They are not “please make it nicer.” When a quincy ma solar electrical plan comes back, the reviewer has usually found a conductor that does not match the inverter output, a disconnect that is not where the note says it is, or a rapid shutdown story that does not appear on both the roof plan and the one-line. Resubmittals stall when you answer those notes with a paragraph instead of a cloud.
Athol Energy drafts the electrical sheet as part of a full Massachusetts package: site plan, roof plan, attachment layout with dimensions, single-line with conductor and conduit notes, cut sheets, and AHJ placard notes. 20,000+ residential projects and 200 MW+ designed with 30+ installer partners does not mean we paste a Boston ISD SLD onto a Quincy two-family and hope the wire sizes survive.
Quincy MA solar electrical plan comments that come back twice
The repeats we map are boring, which is why they keep winning:
- Inverter continuous output vs conductor ampacity, including the 125 percent factor the electrician is expecting to see written, not implied.
- Backfed breaker size vs bus rating, with the 120 percent allowance called out only if you are actually using it.
- AC disconnect shown as “if required” instead of a real device, location, and rating.
- Rapid shutdown equipment named on a cut sheet but missing from the one-line.
- Production meter or SMART meter socket omitted while the interconnection portal asked for it.
- Grounding electrode conductor and array bonding treated as a typical from another town.
If Quincy asked about item 3, revise item 3. Do not also swap module SKUs “while you are in there” unless you want a second round. Freeze equipment before the first upload. That is the same rule we use on Boston jobs next door. Boston ISD notes live on our Boston page. Quincy still wants Quincy wire callouts.
Write the numbers the inspector will megger
Conductor and conduit notes belong on the SLD, not in an email. List circuit, size, type, and raceway. If you upsize for voltage drop on a long garage run, say so. If DC homeruns change between combiners, show both. A note that says “per NEC” is how you earn the same comment twice. Massachusetts electrical work follows 527 CMR 12.00 as the state has adopted the NEC edition in force. Put the edition on the cover. [CONFIRM AS OF 2026-09-19]

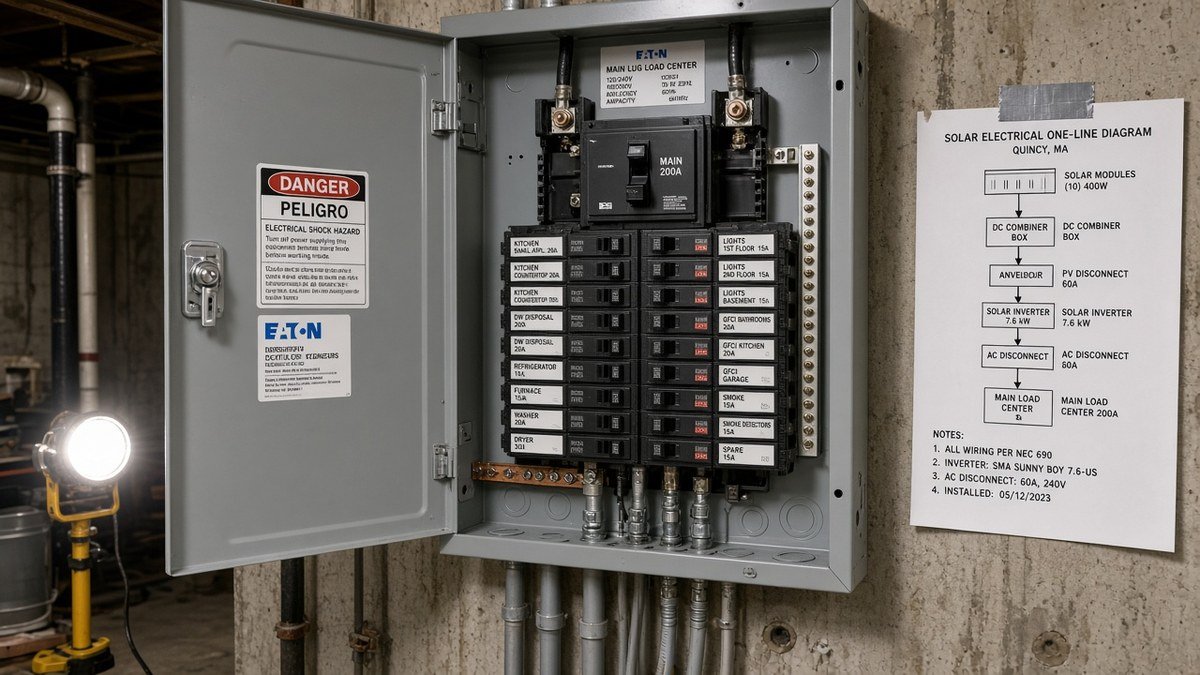

Service details need a small elevation or a clear one-line symbol: main breaker, bus rating, backfed breaker position, and whether the backfed breaker is at the opposite end of the bus. If the existing panel cannot take the backfeed, draw the replacement or the line-side tap you actually intend. Do not leave “panel TBD.” Quincy will not bid your TBD for you.
Rapid shutdown has to be findable. If it is module-level, name the MLPE. If it is a string-level device at the array, show it on the roof plan and on the SLD. Placard text should match what the electrician will stick at the service. Copying a California directory onto a Quincy three-family is a labeling comment, not a shortcut.
Match the utility sketch on the same day
Confirm the EDC from the customer bill before you draw the meter socket. Quincy is commonly Eversource Eastern Massachusetts (former NSTAR). [CONFIRM AS OF 2026-09-19] Eversource’s public Simplified path is listed inverter-based systems 25 kW AC or less on qualifying radial, non-area-network service. Area and spot networks add screens and fees. Parts of the Boston-adjacent coast can surprise you. Check the service. A quincy ma solar electrical plan that says 7.6 kW while PowerClerk says 10 kW is two deficiencies, not one clever upsell.
Eversource installer sessions have said not to use placeholders like “MIN 60A” for a disconnect. Put the device. Show inverter settings as settings, not “per manufacturer.” If storage is on the job, show it. A battery added after the electrical permit is a revision. Athol files interconnection against the same SKUs as permit design.
Mass.gov keeps the interconnection tariff index. Eversource tariffs in the current public set were stamp-approved April 27, 2026. Use those exhibits. Do not reuse a National Grid M.D.P.U. 1632 Exhibit A packet on an Eversource Quincy address.
How we resubmit without restarting the file
You send the comment PDF, the last submitted set, and any field photos the inspector already took. We number a response letter to match Quincy’s numbers. Each line points at a sheet and a cloud. If they asked for conductor size, the cloud is on the conductor, not on the north arrow. If they asked for a cut sheet, the model number is in the letter and in the bill of materials.
Do not submit a full new project as “revision 2” with a different inverter and no clouds. Reviewers look for their own words. Give them their words back, answered. That is also how you protect the install week. A clean electrical resubmittal is faster than a philosophical email about how other towns accept the original.
PE stamps stay scoped. If Quincy did not ask for a sealed electrical sheet, we will not add one to create the appearance of seriousness. If they did ask, we coordinate a Massachusetts PE on the revised SLD, wet or digital as the city accepts. Statewide framing is on Massachusetts solar design services.
Roof plan still matters to the electrical inspector
Homeruns that block a 527 CMR 1.00 fire path become electrical comments in the field even if the SLD is pretty. Keep 36 in. access strips clear. Show junction boxes. If the inverter is in a basement, the directory at the service has to say basement. If the AC disconnect is on the exterior, give it a dimension from the meter, not “near service.”
Cut sheets: inverter, MLPE or shutdown device, meter socket if you specified one, and the module if the electrical reviewer asked. Incomplete PDFs are still incomplete when the roof plan is perfect. Our QA looks for missing dimensions, conflicting callouts, and cut sheets that do not match SKUs. Those three misses are the resubmittal factory.
A building permit is not permission to operate. After inspection, the EDC still issues PTO. If conductors changed in the field, the as-built SLD has to change before you ask for that letter. Do not energize on a Quincy sticker plus an old one-line.
Field failures that start as drawing misses
Quincy inspections fail when the directory at the service does not match the basement inverter, when the AC disconnect is on the opposite wall from the dimensioned elevation, or when the backfed breaker is not in the slot the SLD promised. Those are drawing problems that became truck problems. Photograph the panel interior at intake, including bus stamping if you can read it. If you cannot read the bus, say so on the SLD instead of inventing 200 A.
We also see homeruns landed in a garage that the roof plan still calls a basement. Occupancy of the electrical room matters for working space and for ESS if batteries showed up. If the customer added a wall-unit battery after the electrical permit, stop. That is a revision of the quincy ma solar electrical plan and of the interconnection file. It is not a “while we are here” extra.
Grounding comments often mean the array bonding jumper and the GEC are not both shown. Show them. If you are using the racking as equipment grounding per the listing, cite the listing on the SLD. If you are running a separate EGC, size it. Do not leave the inspector to pick a method in the driveway.
When Quincy asks for a load calculation, give a load calculation. A one-line with pretty symbols and no service math will come back. If the service upgrade is required, draw the upgrade, including the utility’s likely meter-socket constraints. Confirm those constraints with the EDC instead of guessing a 20-slot replacement that Eversource will not set a meter in. [CONFIRM AS OF 2026-09-19]
Keep the comment letter, the response, and revision 2 in one folder. The next PM on your team should be able to see what already closed. Reopening a conductor note that Quincy already accepted is how you lose another week. Statewide electrical context sits on Massachusetts solar design services. Quincy still wants this service’s numbers on this sheet.
Installer questions on Quincy electrical bounces
They marked the 120 percent rule. Now what?
Show bus rating, breaker rating, and the arithmetic on the SLD. If the panel fails the math, draw the panel you will actually hang. Do not argue that the existing 100 A bus “has been fine.”
Can we leave the disconnect as optional?
Not if Quincy or Eversource is expecting a visible, lockable, accessible device. Pick it, rate it, locate it. Optional language is a comment.
Do you need the original comment letter?
Yes. Verbal summaries of “they hated the wires” waste a revision cycle. PDF or it did not happen.
How do we start a clean SLD?
Send the service photos, main breaker, bus rating if readable, equipment list, and AHJ name. Use contact or +1 (209) 266-2669. The next quincy ma solar electrical plan should close the numbered notes, not introduce a new inverter family.
